PIPELINE LINEAR

︎


PIPELINE LINEAR


Pendant
DESIGN : CAINE HEINTZMAN / 2012


Stark, elegant, and resolute, the Pipeline Linear pendant series is understated yet undoubtedly makes a favourable impression within the space it inhabits.

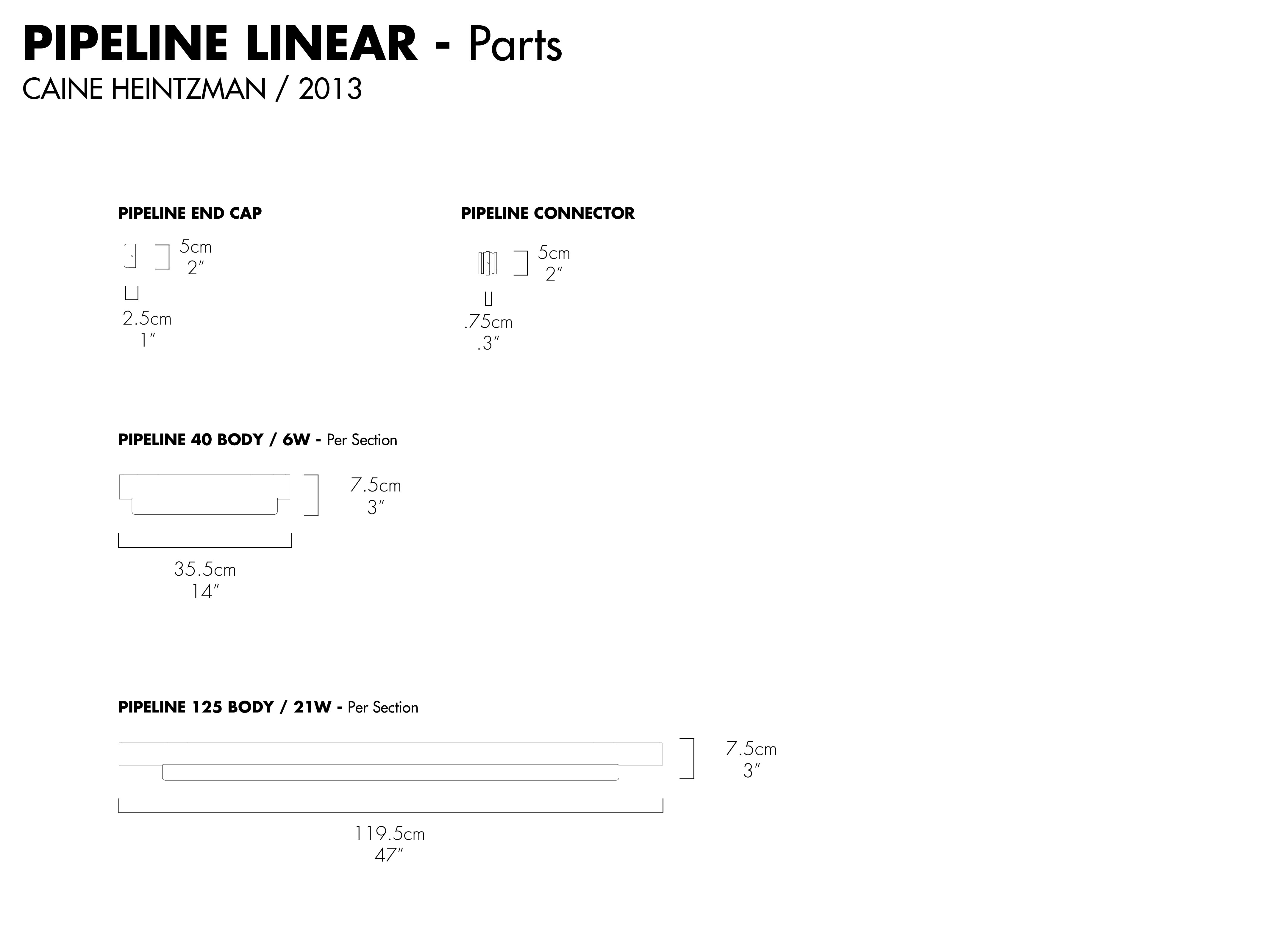

The Pipeline Linear pendants are composed of consecutive runs of linear LED segments (Pipeline 40, Pipeline 125) which are joined together using a modular connecting collar.  90º elbows may also be introduced in conjunction with linear sections to alter the direction of the run.  We offer standard runs of up to 6m / 20’ but also encourage customization as this system easily accommodates nearly unlimited combinations, lengths and orientations for specific project needs.

ANDlight gladly provides design support for special requests. Please email any questions for projects or customization to:  info@andlight.ca



“The purpose of the Pipeline System is to enable a single unit to be effective in repetition through the use of modularly compatible components. The system is about expanding on the simplicity of the singular to engage more complex sequences and arrangements.”

-Caine Heintzman


PIPELINE 125.2

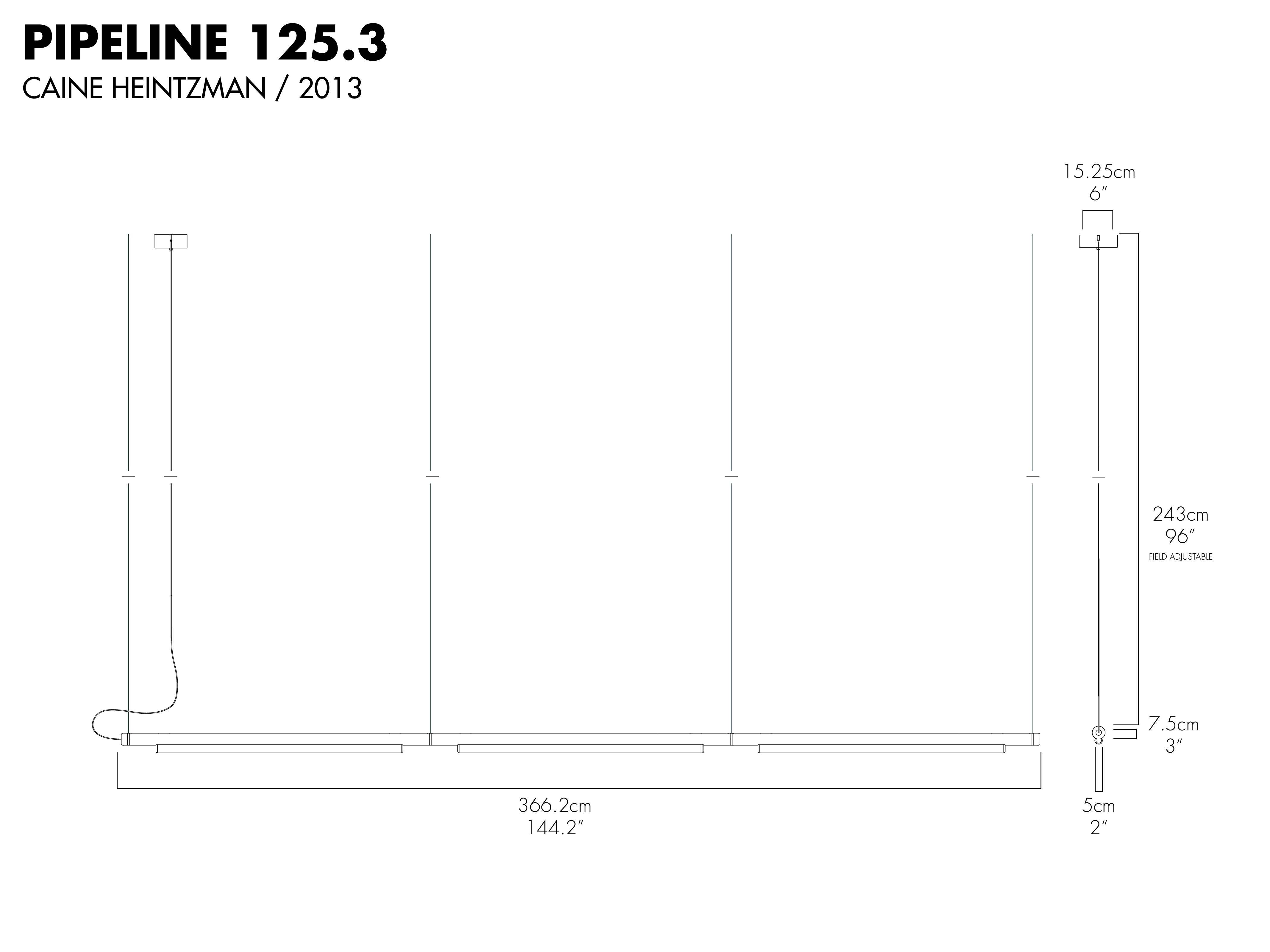

PIPELINE 125.3





Dimensions
Model Specific - Refer to Cutsheet

Canopy



Finishes
White Powder Coat
‘WH’
Black Anodize
‘BK’
Polished Copper
‘CP’
Polished Brass
‘BR’
Aluminum + Copper
‘PC’
Black Anodize + Copper
‘BC’
Mounting
Pendant
Application
Down-Light
Lamping
Linear Led
Wattage Specific to Model
70 000 Hrs Lifetime
2700K / 4100K
91 CRI
Electrical
Dimming Low Voltage Magnetic Driver
North America - 120V Input
Europe - 230V Input
    (Remote & 277V Optional)
- Integral 24V Power Supply Included (Located In Canopy)
Colour Temperature2700K
4100K
*Other Colour Temperatures
Available Upon Request
Materials
Aluminium Body
Acrylic Diffuser
Linear Led
Aircraft Cable
Factory Cord Length 243 cm / 96 “
*custom length available upon request.
Certification
cETLus
CE
