- PIPELINE SERIES


PIPELINE 40
︎


PIPELINE 40


Pendant
DESIGN : CAINE HEINTZMAN / 2012

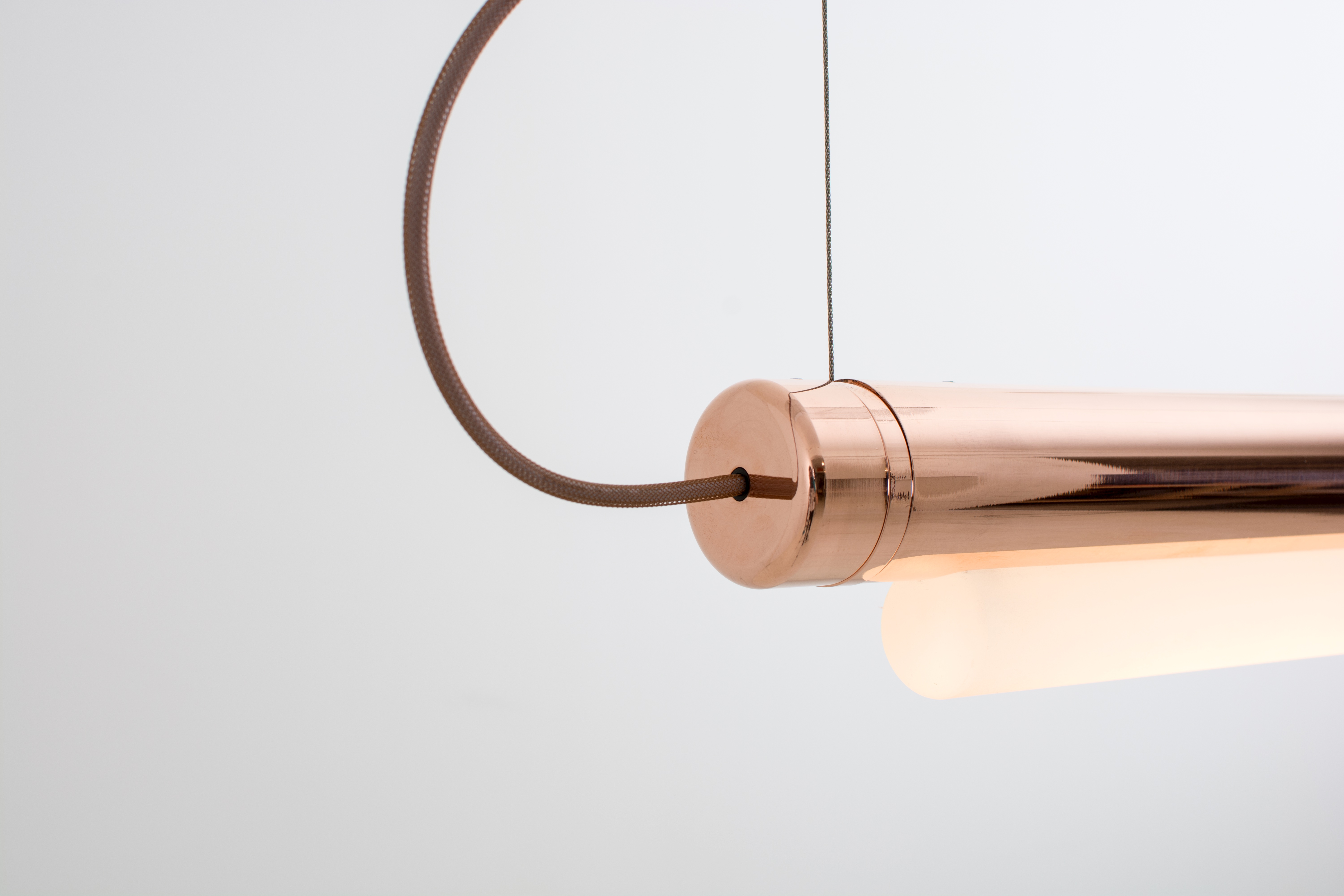

Stark, elegant, and resolute, The Pipeline 40 pendant lamp suspends horizontally from 1mm thin aircraft cables, creating the illusion of floating in air.  The understated fixture uniformly emits a wide horizontal beam of light through a specially developed diffuser designed to soften LED light while maximizing output.  The fixture body is made with machined aluminium and is available in powder coat, anodize and decorative plated finishes.

The Pipeline pendant may be suspended horizontally level or at angles, individually or in multiples and undoubtedly makes a favourable impression within the space it inhabits.


“The primary function of the Pipeline fixture is to provide diffused even linear light.  The design of the body, all of the components, how it is assembled and how it is suspended serve that purpose, the result is an uncomplicated and very practical and applicable light fixture that is at home in many situations.”

-Caine Heintzman





Gallery Penthouse

Vancouver, BC Canada

PIPELINE 125 and PIPELINE 40 in White.

Project Architect / Measured Architecture
Clinton Cuddlington + Piers Cunnington.

Photographer / Andrew Latreille.






Dimensions
42cm x 7.5cm x 5cm / 16.5” x 3“ x 2”

Canopy






Finishes
White Powder Coat
‘WH’
Black Anodize
‘BK’
Polished Copper
‘CP’
Polished Brass
‘BR’
Aluminum + Copper
‘PC’
Black Anodize + Copper
‘BC’
Mounting
Pendant
Application
Down-Light
Lamping
6W Linear Led
70 000 Hrs Lifetime
2700K / 4100K
91 CRI

Electrical
Dimming Low Voltage Magnetic Driver
North America - 120V Input
Europe - 230V Input
    (Remote & 277V Optional)

 - Integral 24V Power Supply Included (Located In Canopy)

Colour Temperature2700K
4100K
*Other Colour Temperatures
Available Upon Request
Materials
Aluminium Body
Acrylic Diffuser
Linear Led
Aircraft Cable
Factory Cord Length 243 cm / 96 “
*custom length available upon request.
Certification
cETLus
CE
