PIPELINE SERIES


______

The Pipeline series begins with a linear LED light, elegant in its simplicity; however what sets it apart is the ability to expand the scale of the fixture by multiplying the modular pendant, creating an infinite range of tailored lights.

Due to the modularity of the Pipeline series it is easily customized to be tailored to a wide variety of applications.




For design support/questions regarding customization of the Pipeline series, please inquire at info@andlight.ca




SERIES:







______

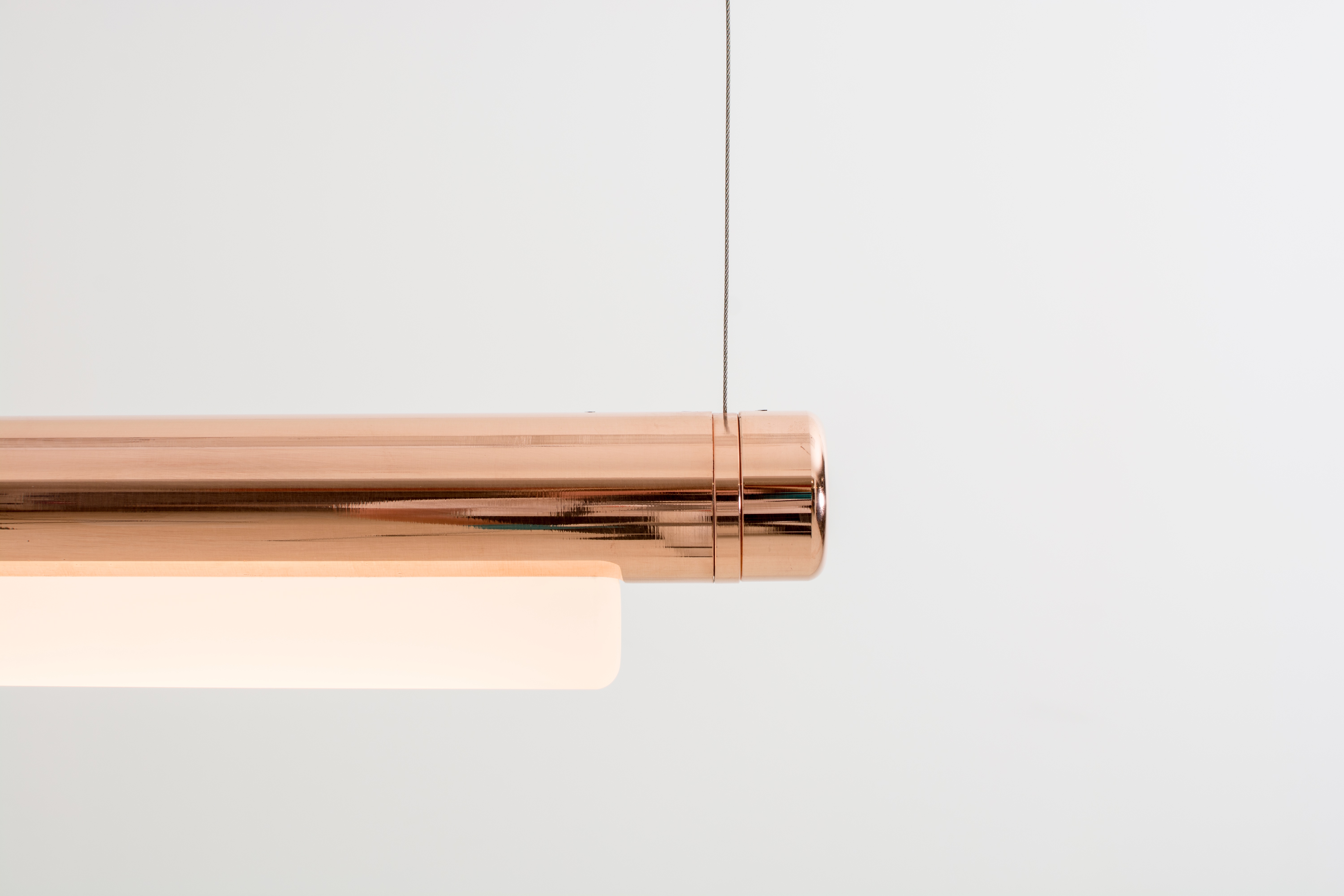

PIPELINE 40

PENDANT


DESIGNER: CAINE HEINTZMAN, 2012

Stark, elegant, and resolute, The Pipeline 40 pendant lamp suspends horizontally from 1mm thin aircraft cables, creating the illusion of floating in air. The understated fixture uniformly emits a wide horizontal beam of light through a specially developed diffuser designed to soften LED light while maximizing output.

The Pipeline pendant may be suspended horizontally level or at angles, individually or in multiples and undoubtedly makes a favourable impression within the space it inhabits.



CUT SHEET︎︎︎


QUICK LINKS ︎

︎ INSTRUCTIONS — North America
︎ INSTRUCTIONS — World Market

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY












DIMENSIONS
42 x 7.5 x 5 cm / 16.5” x 3“ x 2”

MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
5W LED
47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V + 227V
Integral 24V DC power supply included
Dimming Options: MLV, 0–10, Dali


COLOUR TEMPERATURE

CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)

CANOPY

6” Ø / 15cm x 5cm / 6” x 2”





PIPELINE
40, PENDANT, WHITE

PIPELINE 40, PENDANT, BRASS

PIPELINE 40, PENDANT, WHITE





SEE THE PIPELINE IN USE ︎ PROJECTS





______

PIPELINE 125

PENDANT


DESIGNER: CAINE HEINTZMAN, 2012

Stark, elegant, and resolute, The Pipeline 125 pendant lamp suspends horizontally from 1mm thin aircraft cables, creating the illusion of floating in air. The understated fixture uniformly emits a wide horizontal beam of light through a specially developed diffuser designed to soften LED light while maximizing output.

The Pipeline pendant may be suspended horizontally level or at angles, individually or in multiples and undoubtedly makes a favourable impression within the space it inhabits.


CUT SHEET︎︎︎


QUICK LINKS ︎

︎ INSTRUCTIONS — North America
︎ INSTRUCTIONS — World Market

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY








DIMENSIONS
125 x 7.5 x 5cm /
49.5” x 3“ x 2”


MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
15W LED
47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V + 227V
Integral 24V DC power supply included
Dimming Options: MLV, 0–10, Dali


COLOUR TEMPERATURE

CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)

CANOPY

6” Ø / 15cm x 5cm / 6” x 2”






PIPELINE
125, PENDANT, WHITE

PIPELINE 125, PENDANT, WHITE

PIPELINE 125, PENDANT, WHITE





SEE THE PIPELINE IN USE ︎ PROJECTS




______

PIPELINE LINEAR

PENDANT


DESIGNER: CAINE HEINTZMAN, 2012

Stark, elegant, and resolute, The Pipeline Linear pendant lamp suspends horizontally from 1mm thin aircraft cables, creating the illusion of floating in air. The  fixture uniformly emits a wide horizontal beam of light through a specially developed diffuser designed to soften LED light while maximizing output.

The Pipeline pendant may be suspended horizontally level or at angles, individually or in multiples and undoubtedly makes a favourable impression within the space it inhabits.



CUT SHEETS︎︎︎

125.2 | 125.3 | 125.4 | 125.5

QUICK LINKS ︎

︎ INSTRUCTIONS — North America
︎ INSTRUCTIONS — World Market

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY













DIMENSIONS
125.2:  246 x 7.5 x 5cm / 97” x 3“ x 2”


125.3:  366.2 x 7.5 x 5cm / 144.2” x 3“ x 2”

125.4:  486.5 x 7.5 x 5cm / 191.5” x 3“ x 2”

125.5:  606.6 x 7.5 x 5cm / 238.8” x 3“ x 2”


MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
125.2: 30W LED
125.3: 45W LED
125.4: 60W LED
125.5: 75W LED


47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V + 227V
Integral 24V DC power supply included
Dimming Options: MLV, 0–10, Dali


COLOUR TEMPERATURE

CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)

CANOPY

6” Ø / 15cm x 5cm / 6” x 2”





PIPELINE
125.2, PENDANT, COPPER

PIPELINE
125.4, PENDANT, BLACK


PIPELINE
125.3, PENDANT, WHITE






SEE THE PIPELINE IN USE ︎ PROJECTS






______

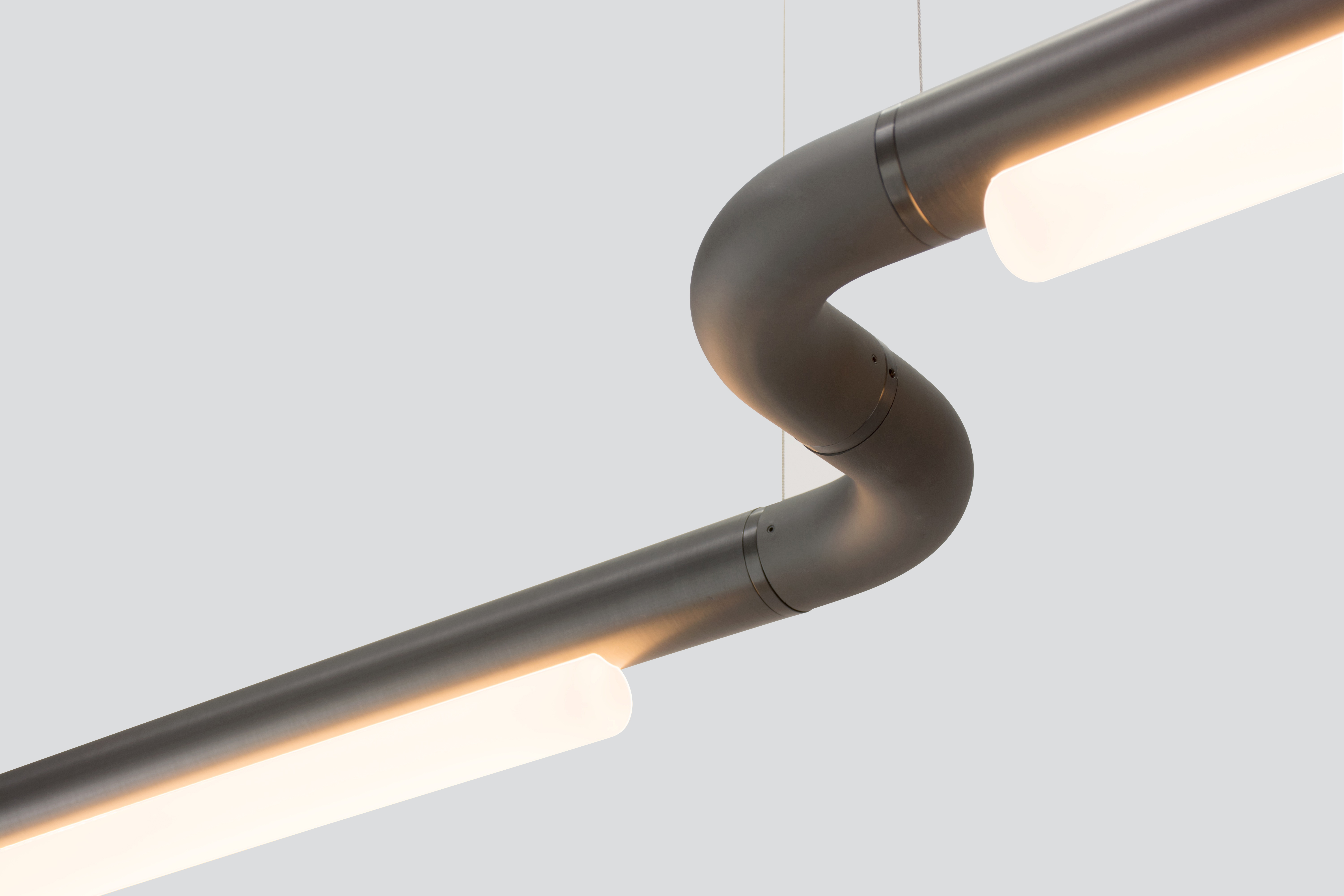

PIPELINE CM

PENDANT


DESIGNER: CAINE HEINTZMAN, 2012

The series applies the modular capability of the Pipeline series design, utilizing combinations of parts to create unique configurations such as ‘S’ curves, loops, and larger angular arrangements which suit an array of functional and decorative applications.
















DIMENSIONS
Model Specific

MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
CM1: 10W LED
CM2:
20W LED
CM3:
30W LED
CM4:
40W LED
CM5:
20W LED
CM6:
30W LED
CM7:
60W LED
CM8:
70W LED
CM9:
2 x 45W LED


47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V + 227V
Integral 24V DC power supply included
Dimming Options: MLV, 0–10, Dali


COLOUR TEMPERATURE

CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)

CANOPY

6” Ø / 15cm x 5cm / 6” x 2”





PIPELINE
CM6, PENDANT, BLACK

PIPELINE
CM4, PENDANT, BLACK


PIPELINE
CM3, PENDANT, BRUSHED, COPPER






SEE THE PIPELINE IN USE ︎ PROJECTS










______

PIPELINE 40

PIPELINE 125

CEILING/WALL


DESIGNER: CAINE HEINTZMAN, 2021

Designed to serve and enhance architectural spaces, the Pipeline Ceiling/Wall provides accent lighting while becoming an integral element of the space itself. As a surface mounted luminaire, its space efficiency meets the technical specifications of tighter spaces: lower ceiling, corners and corridors, or the need for wall mounted light.


CUT SHEET︎︎︎

40 | 125

QUICK LINKS ︎

︎ INSTRUCTIONS — North America
︎ INSTRUCTIONS — World Market

︎ PRESS KIT

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY















DIMENSIONS

CEILING/WALL 40:
42 x 9 x 5 cm / 16.5” x 3.5“ x 2”


CEILING/WALL 125:
125 x 9 x 5cm / 49.5” x 3.5“ x 2”


MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL

CEILING/WALL 40: 5W LED

CEILING/WALL 125:
17W LED


47,000 hour Lifetime
90+ CRI
Input Voltage:
110–120V / 220–240V / 110–277V
Integral 24V DC power supply included
Controls: Phase dimming / 0–10 / DALI


COLOUR TEMPERATURE

CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)






PIPELINE
125, CEILING/WALL, VARIOUS FINISHES WITH COVER PLATE



PIPELINE 125, CEILING/WALL, BLACK


PIPELINE 40, CEILING/WALL, BLACK







SEE THE PIPELINE IN USE ︎ PROJECTS





______

PIPELINE LINEAR SYSTEM

CEILING/WALL


DESIGNER: CAINE HEINTZMAN, 2021

Designed to serve and enhance architectural spaces, the Pipeline Ceiling/Wall provides accent lighting while becoming an integral element of the space itself. As a surface mounted luminaire, its space efficiency meets the technical specifications of tighter spaces: lower ceiling, corners and corridors, or the need for wall mounted light.



CUT SHEETS︎︎︎

125.2 | 125.3 | 125.4 | 125.5

QUICK LINKS ︎

︎ PRESS KIT

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY
















______

PIPELINE CM SYSTEM

CEILING/WALL


DESIGNER: CAINE HEINTZMAN, 2021

Designed to serve and enhance architectural spaces, the Pipeline Ceiling/Wall provides accent lighting while becoming an integral element of the space itself. As a surface mounted luminaire, its space efficiency meets the technical specifications of tighter spaces: lower ceiling, corners and corridors, or the need for wall mounted light.



CUT SHEETS︎︎︎

CM1 |  CM2 |  CM3
CM4 |  CM5 |  CM6
CM7 |  CM8


QUICK LINKS ︎

︎ PRESS KIT

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY







PIPELINE CEILING/WALL, CM1

PIPELINE CEILING/WALL, CM2




PIPELINE CEILING/WALL, CM3

PIPELINE CEILING/WALL, CM4




PIPELINE CEILING/WALL, CM5

PIPELINE CEILING/WALL, CM6




PIPELINE CEILING/WALL, CM7

PIPELINE CEILING/WALL, CM8














DIMENSIONS
CEILING/WALL 125.2:246 x 9 x 5cm / 97” x 3.5“ x 2”
CEILING/WALL 125.3:366 x 9 x 5cm / 144” x 3.5“ x 2”
CEILING/WALL 125.4:487 x 9 x 5cm / 192” x 3.5“ x 2”
CEILING/WALL 125.5:607 x 9 x 5cm / 239” x 3.5“ x 2”

CEILING/WALL CM1:100 x 26 x 9cm / 39” x 10“ x 3.5”
CEILING/WALL CM2:186 x 26 x 9cm / 73” x 10“ x 3.5”
CEILING/WALL CM3:272 x 26 x 9cm / 107” x 10” x 3.5“
CEILING/WALL CM4:146 x 63 x 9cm / 57” x 25“ x 3.5”
CEILING/WALL CM5:63 x 63 x 9cm / 25” x 25“ x 3.5”
CEILING/WALL CM6:146 x 26 x 9cm / 57” x 10“ x 3.5”
CEILING/WALL CM7:267 x 26 x 9cm / 105” x 10“ x 3.5”
CEILING/WALL CM8:267 x 63 x 9cm / 105” x 25“ x 3.5”

MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
CEILING/WALL 125.2: 34W LED
CEILING/WALL 125.3: 51W LED
CEILING/WALL 125.4: 68W LED
CEILING/WALL 125.5: 85W LED


CEILING/WALL CM1: 10W LED
CEILING/WALL CM2: 22W LED
CEILING/WALL CM3: 34W LED
CEILING/WALL CM4: 44W LED
CEILING/WALL CM5: 20W LED
CEILING/WALL CM6: 34W LED
CEILING/WALL CM7: 68W LED
CEILING/WALL CM8: 78W LED



47,000 hour Lifetime
90+ CRI
Input Voltage:
110–120V / 220–240V / 110–277V
Integral 24V DC power supply included
Controls: Phase dimming / 0–10 / DALI


COLOUR TEMPERATURE

CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)





PIPELINE
CM1, CEILING/WALL, BRASS

PIPELINE
CM2, CEILING/WALL, WHITE


PIPELINE
CM7, CEILING/WALL, COPPER






SEE THE PIPELINE IN USE ︎ PROJECTS





______

PIPELINE SERIES

TABLE/FLOOR

DESIGNER: CAINE HEINTZMAN, 2017


Stark, elegant, and resolute, the Pipeline 40 table lamp and Pipeline 125 floor lamp stand upright, balancing on a chrome mirror weighted base reflecting its stance and creating the illusion of floating.



CUT SHEETS︎︎︎

TABLE | FLOOR

QUICK LINKS ︎

︎ INSTRUCTIONS

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY
















DIMENSIONS
TABLE 40: 62 x 20 cm / 24.5” x 8“
FLOOR 125: 170 x 25cm/ 67” x 10”


MATERIALS
Aluminum Body

Cast Acrylic
Polished Stainless Steel Base


MANUFACTURED
Canada

ELECTRICAL
TABLE 40: 5W LED
FLOOR 125: 15W LED

47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V
Hand/Floor Foot Dimmer Switch Included


COLOUR TEMPERATURE

CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)





PIPELINE
TABLE, BLACK

PIPELINE
TABLE, BRASS


PIPELINE
FLOOR, BLACK






SEE THE PIPELINE IN USE ︎ PROJECTS





______

PIPELINE CHANDELIER


︎ PENDANT

By definition, the Pipeline Chandelier features a cylindrical arrangement of linear illuminated sections cinched by metal hoops. Its carousel-like form proposes an unconventional lighting solution, one that radiates and spreads from its concentric structure.

The Pipeline Chandelier is a new take on the original Pipeline series. The series’ backbone is a singular linear pendant, available in two different lengths, which can then be suspended individually, sequentially or connected in a mix of sizes and connecting styles. The result is a luminaire that can be moulded to any environment and express any vision.

Utilizing the linear components of the original Pipeline series, the barrel introduces a new connector: conjoining all components together, the metal hoop comes in three diameters; thus offering a fixture for residential to larger scale commercial projects.






CHANDELIER-1
CHANDELIER-2
CHANDELIER-3
CHANDELIER-4
CHANDELIER-5
CHANDELIER-6
CHANDELIER-7
CHANDELIER-8
CHANDELIER-9
CHANDELIER-10
CHANDELIER-11
CHANDELIER-12




DESIGNER: CAINE HEINTZMAN, 2019



TECHNICAL INFO

︎ INSTRUCTIONS — North America
︎ INSTRUCTIONS — World Market

︎ IMAGE REQUEST

︎ PRODUCT BOOKLET

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY











3 DIAMETERS, 2 LENGTHS

Utilizing the linear components of the original Pipeline series, available in two different lengths; the Chandelier introduces a new connector: conjoining all components together, the metal hoop comes in three diameters.




ONE-TIER – 1 – WHITE

ONE-TIER – 2 – BRASS
ONE-TIER – 3 – BLACK



ONE-TIER – 4 – BRASS

ONE-TIER – 5 – COPPER

ONE-TIER – 6 – WHITE





DIMENSIONS
Model Specific

MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
Model Specific
47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V + 227V
Integral 24V DC power supply included
Dimming Options: MLV, 0–10, Dali


COLOUR TEMPERATURE

CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)

CANOPY

6” Ø / 15cm x 5cm / 6” x 2”






PIPELINE CHANDELIER ONE-TIER – 4, BLACK

PIPELINE CHANDELIER ONE-TIER – 4, BLACK

PIPELINE CHANDELIER THREE-TIER – 2, COPPER





SEE THE PIPELINE IN USE ︎ PROJECTS







SINGLE-TO MULTI-TIER


TWO-TIER


THREE-TIER


Available models include a single-tier, two-tier and three-tier option; and suspends vertically or horizontally; thus offering a fixture that suits residential to larger scale commercial projects.







HORIZONTAL OR VERTICAL
